Introduction
UniFi Access Points (APs) and
other devices are fantastic, but can be difficult to
adopt from a UniFi Controller if they never show up.
Many different DHCP servers can be configured to tell the devices where the
Controller is. You can learn to configure several DHCP servers here but, to my
knowledge, no one has yet written a tutorial on how to do this with Windows
DHCP Server. This article aims to teach you just how to do that.
Cisco's document on setting up DHCP option 43 for their
branded devices was invaluable to my understanding. Similarly, Ubiquiti's own
document on the adoption of remote devices by a UniFi
Controller provided the rest of the information I needed. Armed with these two
articles I set about experimenting, and ended up
successfully adopting devices on a separate network from the controller.
Prerequisites
This article assumes these to be true:
You have a working network with two separate subnets
A Windows Server handles all DHCP requests for the networks
You are not using the router's built in DHCP server
There is a UniFi AP (or other UniFi device) on a separate subnet from the UniFi Controller
If you have not met these prerequisites, this will not
likely work for you. Setting up these requirements is beyond the scope of this
article, but YouTube has a ton of videos on how to set these devices up in any
fashion you wish.
The Weeds
Understanding Things
Let's get into the nitty and the gritty. The first thing to
understand is some terminology. There is a fancy text string called a Vendor
Class Identifier (VCI), which some network devices transmit as part of their
DHCP request, in option 60. When the DHCP server receives a request that
contains an option 60, it reads the VCI and checks against its defined Vendor
Classes to see if that VCI exists in its database.
Assuming the Vendor Class exists, the DHCP server will add
all vendor specific scope options for the specified VCI to the generic options
it's already sending. These vendor specific suboptions
will be combined into a single Option 43 when sent to the requestor.

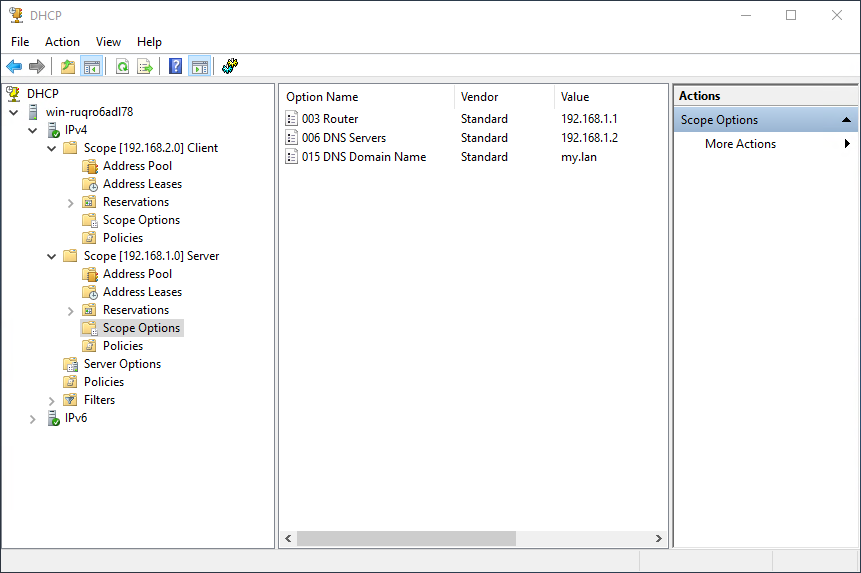

Three common options a DHCP server generally sends along
with an IP address are:
Option Name Vendor
003 Router Standard
006 DNS Server Standard
015 DNS Domain
Name Standard
When it detects a VCI for which it has a defined class, the
DHCP server will also add any scope-assigned options from that class. For
instance, when an option 60 VCI of ubnt was sent with
a DHCP request, a Ubiquiti class might also send:
Option Name Vendor
001 UniFi Controller Ubiquiti
This additional option would bring the entire set of options
to this:
Option Name Vendor
003 Router Standard
006 DNS Server Standard
015 DNS Domain
Name Standard
001 UniFi Controller Ubiquiti
All these options, in addtion to
an IP address, would be sent to the device that originally include an option 60
value of ubnt in its DHCP request. In fact, this is
exactly what we're going to make the Windows DHCP server do.
Windows DHCP Server Configuration
Open up the DHCP control panel. In
Windows Server 2012 and higher, do this from Server Manager by clicking Tools,
then DHCP.

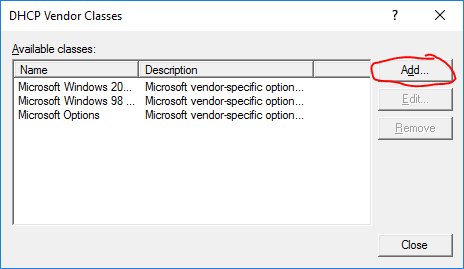

Right click on the IPV4 node just below your server name, and choose Define Vendor Classes. You will be
presented with this fancy screen.
Add a new vendor class by clicking the Add button. In the
New Class window, enter a Display Name (I suggest Ubiquiti) and an optionally
enter a description. In the ASCII portion of the lowest box type the letters ubnt. Make sure there's nothing else, to include white
space, in that box. The whole line should read 0000 75 62 6E 74 ubnt as in the screenshot. Click OK, then Close to close
both windows.
Right click the IPV4 node again and choose Set Predefined
Options from the context menu. In the Predefined Options and Values window,
choose your new Ubiquiti class from the top dropdown, and click the Add button
to create a new option.

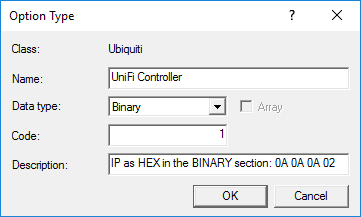

In the Option Type window, enter UniFi
Controller, or some similar name, into the Name box, choose Binary in the Data
type dropdown, and enter 1 in the Code box. I chose to write "IP as HEX in
the BINARY section: 0a 0a 0a
02" in the Description box to remind myself how to enter the controller's
IP address later. Click OK, then OK again to accept and close both windows.
We have now defined both the Ubiquiti vendor class and a
predefined option in that class that we can use to point our devices at our UniFi Controller, no matter what subnet they're on.

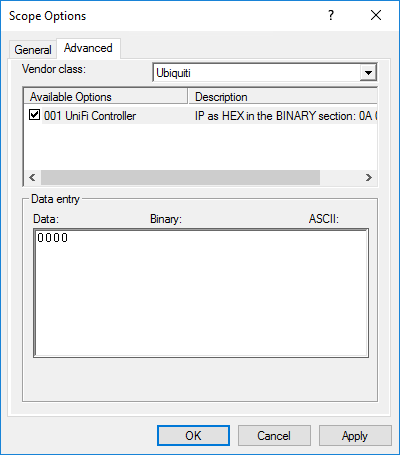

For each subnet that contains UniFi
devices, we must now add our newly created option to the Scope Options. Begin
by right clicking the Scope Options node under one of your Scopes,
and choosing Configure Options. Click the Advanced tab and choose
Ubiquiti under Vendor Class dropdown.
There's only one option, so that's obviously the one we
want. Make sure it's checked, and then erase the default value in the Binary
section.
We now need to do a little math. The IP address of your UniFi Controller must be converted from decimal to
hexadecimal. Windows 8.1 and later (at least) makes this extraordinarily easy
with the built in calculator.

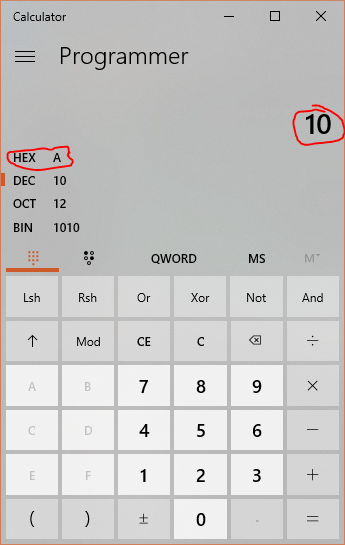

Open the windows calculator and go to Programmer mode. Ensure
DEC mode is selected and type in the first octet of your UniFi
Controller's IP, then see the HEX value displayed. Windows displays the value
as a single digit when possible, but when entering it
in hexadecimal, it must be 2 digits. Prepend a 0 to any single-digit hex values
you get. For example, 10 converts to A, so you would prepend a 0 and get 0A for
your hexadecimal octet.
Repeat this for each octet in your IP address, writing down
each hex value.
Note: If you are using the older version of calculator
(before the Windows Universal Apps version), you may need to click the HEX
radio button to see it converted.
Once you have all the hexadecimal octets, you need to enter
them into the Binary section of the Data Entry box. Just type the numbers in
the order of the octets. An IP of 10.10.10.2, for instance, would be entered as
0A 0A 0A 02. Click OK to
close the Scope Options window.
Reboot your APs and watch them magically appear in your UniFi Controller.
Conclusion
Getting your UniFi devices working
with a controller on another network can be a bit of a challenge. All the tools
needed already exist in one form or another, however, and with just a little
research and guidance it shouldn't be too difficult to get yours set up. The
bonus to using this method, from what I understand, is that the Ubiquiti Option
43 we created in this tutorial will not be offered unless it's requested via option
60.
